MODEL 3D

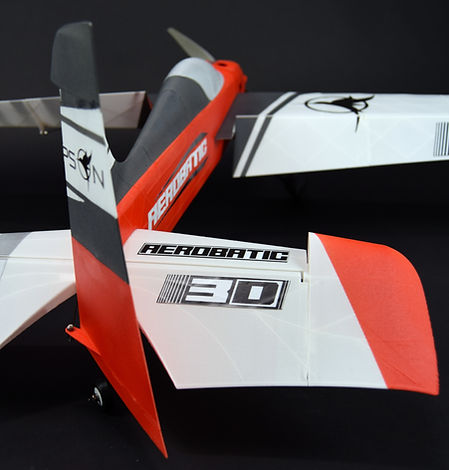

Eclipson Model 3D is an airplane specifically designed for 3D flying. It can perform all kinds of aerobatic manoeuvres with exceptional precision. The wing loading and the aerobatics achieved by this model are comparable to the best performing 'foamy' counterparts that you can find on the market, but for a fraction of the cost of course. The airplane is extremely easy to print thanks to the 'no retraction' design philosophy which minimises print head travel. Although the airplane is primarily designed for aerobatic flying, it is also a great sport flyer suitable for most pilot skill levels. For the less experienced we provide a second motor mount where the standard power pack, less powerful, power pack can be used.
Includes:
-STL files

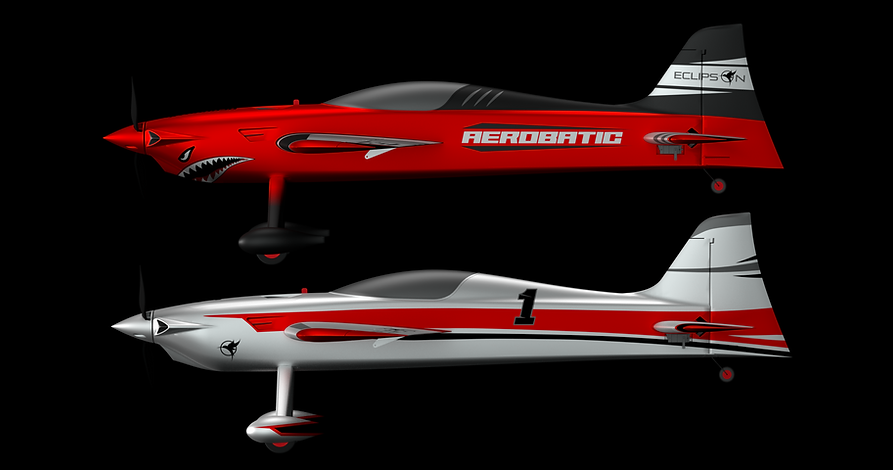

-2 Scheme design
-G-codes
€42
Features:
-High precision
-Large control surfaces
![]() | ![]() | ![]() | ![]() |
---|---|---|---|
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() |
SPECIFICATIONS
PRINTED WEIGHT 650g
TAKE OFF WEIGHT 1200g
STALL SPEED 25km/h
MIN WING LOADING 42g/dm²
WING SPAN 1200mm (47")
WING SURFACE 28dm²
WING ASPECT RATIO 4,8
LENGTH 1200mm
Note: It is required the use of LW-PLA for this model.
SHOPPING LIST
ALL THE COMPONENTS THAT YOU HAVE TO BUY TO FLY THE AIRPLANE
3D PRINTER
MIN PRINTING VOLUME - 200x200X190 (X,Y,Z)
NOZZLE DIAMETER - 0,4 mm
Recommended

FILAMENT
QUANTITY - 400g (LW-PLA) and 250g (PLA)
Recommended

CONFIGURATION 1
POWERFUL POWER PACK
MOTOR
KV- 800 to 1200
MAX POWER - 300 to 1000 watts
DIAMETER - 35mm
VOLTAGE - Up to 14,8V (4S)
Proposed
SunnySky X2814 900KV


PROPELLER
FOR 900KV - 11x7
FOR 1200KV - 11X5.5
Proposed:
Propeller knife horse paddle

CONFIGURATION 2
ECLIPSON STANDARD POWER PACK
SERVOS NEEDED - x4
Recommended

BATTERY
VOLTAGE - 11,1V (3S) or 14,8 (4S)
CAPACITY - 1800 mAh to 2200 mAh
DISCHARGE - >20C
Recommended
BAT3

RADIO CONTROL SYSTEM
MIN CHANNELS - 5CH
Recommended

OTHER PARTS
-PUSH RODS - D1,2mm (min length 400mm) 5units
-STEEL ROD - D3mm (Length 190mm) 2units
-CF TUBE - D8mm (Length 500mm) 4units
-CF TUBE - D4mm (Length 400mm) 1unit
-STOP COLLARS D2,1mm 3units
-BOLT - M3X15mm (with nuts and washers) 4units
-SCREW - M2X8mm (aprox) 22units
-GLUE - cyanoacrylate
-PUSH RODS CONNECTORS 4units
-RUBBER BAND- L50mm (aprox.)
-VELCRO
-SERVO LEAD EXTENSION (min 450mm) 2 units
-SERVO LEAD EXTENSION (min 100mm) 2 units
Recommended
